Scanpath Storytelling From Fixations in Python using Pupil Labs Eye Tracking
This guide explains how to turn fixation data exported from a Pupil Labs eye tracker into a readable scanpath: you will plot fixations on the panorama and connect them in temporal order to show the “story” of visual attention.
By the end, you will generate:

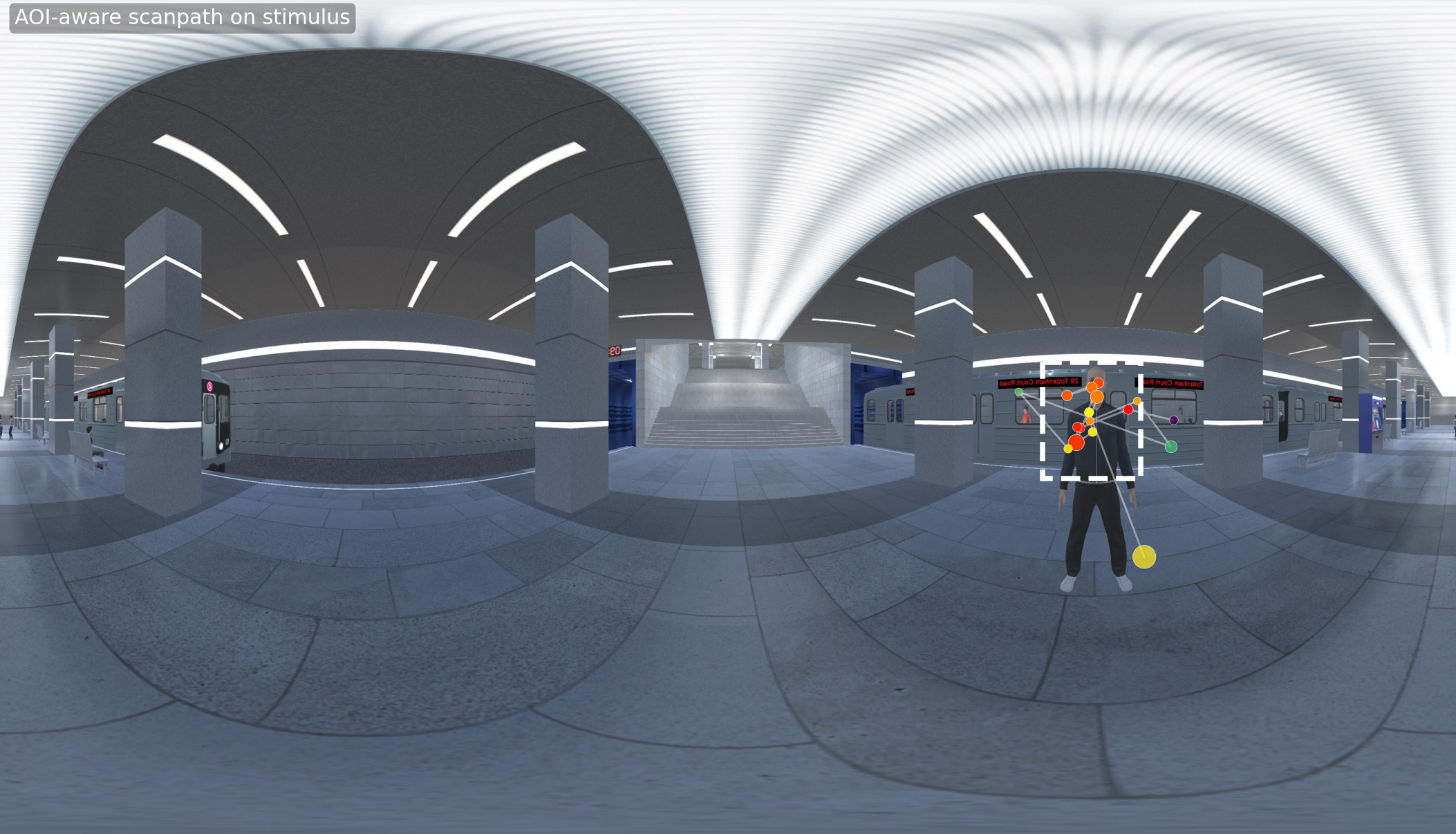

- A static scanpath overlay on the panorama (fixation dots sized by duration + connecting saccade path)
- An animated scanpath replay that reveals the sequence fixation-by-fixation
- A small summary plot (fixation durations over time / order)
- (Optional, but recommended for this tutorial) An AOI-aware scanpath using the avatar AOI, plus an AOI sequence plot
Note. This code works with Pupil Labs CSV exports (especially
Download Fixations CSV File
Download Panorama Image
By the end, you will generate:
- A static scanpath overlay on the panorama (fixation dots sized by duration + connecting saccade path)
- An animated scanpath replay that reveals the sequence fixation-by-fixation

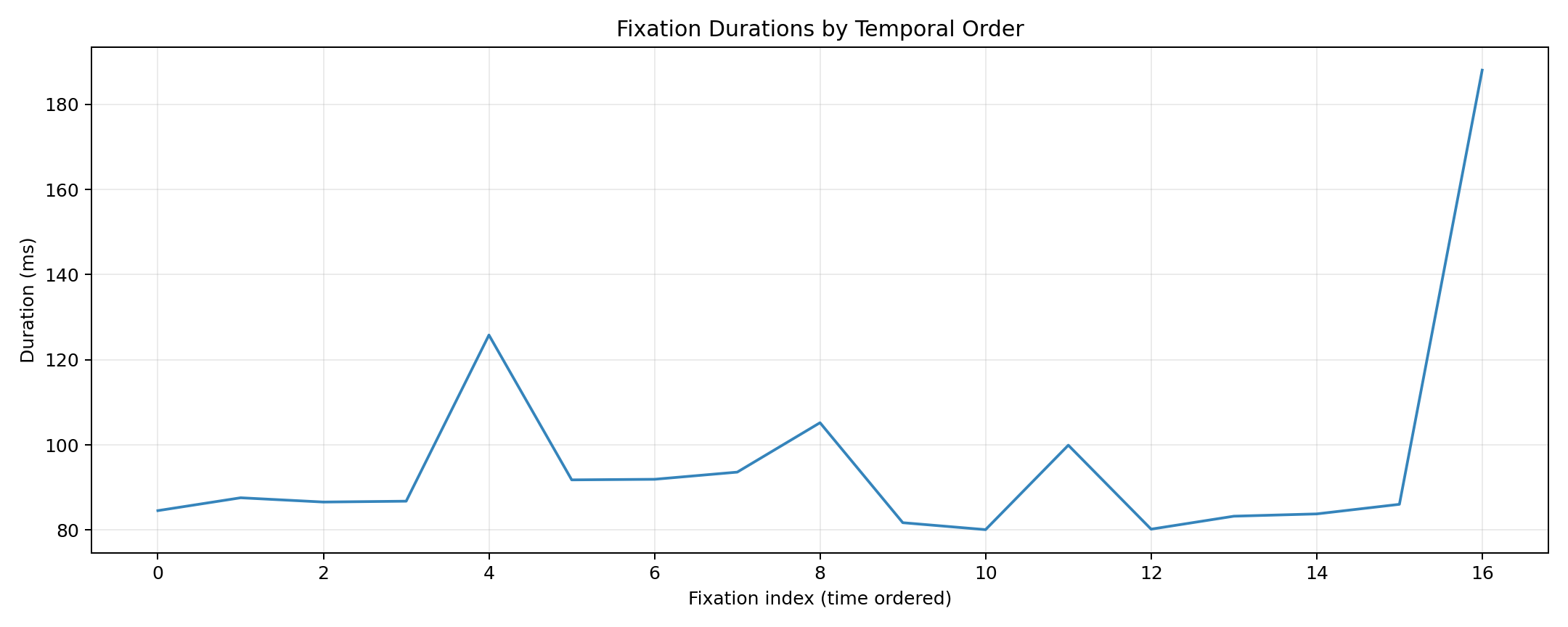

- A small summary plot (fixation durations over time / order)
- (Optional, but recommended for this tutorial) An AOI-aware scanpath using the avatar AOI, plus an AOI sequence plot
Note. This code works with Pupil Labs CSV exports (especially
fixations.csv). The code uses a panorama image captured in VRDownload Fixations CSV File
Download Panorama Image
Requirements
- Anaconda Python Development Environment
- CSV files exported from Pupil Labs
- Optional panorama image (recommended for the most informative visualization)
- Python packages:
-
-
-
-
- CSV files exported from Pupil Labs
- Optional panorama image (recommended for the most informative visualization)
- Python packages:
-
pandas-
numpy-
matplotlib-
Pillow (usually included with Anaconda; used for reading images and writing GIFs)
Setup
1. Install Anaconda if needed.
2. Open Spyder, Jupyter Notebook, or VS Code.
3. Put the files in your working folder:
-
- optional:
- optional: a panorama image file (for example, a panorama or screenshot)
4. Save the script as
To use Spyder, install Anaconda, run it, and launch Spyder. If you see Install instead of Launch for Spyder, install Spyder first. Create a new file in Spyder and save it in the same directory as your data when you run the examples below.
2. Open Spyder, Jupyter Notebook, or VS Code.
3. Put the files in your working folder:
-
fixations.csv (required)- optional:
gaze_positions.csv (not required for the scanpath overlay in this tutorial)- optional: a panorama image file (for example, a panorama or screenshot)
4. Save the script as
scanpath_storytelling.py in the same folder (or a folder of your choice and pass paths on the command line).To use Spyder, install Anaconda, run it, and launch Spyder. If you see Install instead of Launch for Spyder, install Spyder first. Create a new file in Spyder and save it in the same directory as your data when you run the examples below.
Step 1 Data
We start with the fixation events exported by Pupil Labs.
Important variables from
-
-
-
-
Important variables from
fixations.csv: -
start_timestamp: when the fixation started (used to sort fixations in time order) -
duration: fixation duration in milliseconds (used to size fixation markers) -
norm_pos_x, norm_pos_y: normalized gaze coordinates (used to place fixations on the panorama) -
confidence: fixation confidence (used to optionally filter low-quality fixations) Step 2 Plot a Static Scanpath Overlay
In this step, we:
1. Load
2. Sort fixations by
3. Convert
4. Draw fixation dots (size proportional to
This static plot is the “headline figure” for students: it turns raw points into an interpretable behavioral trace.
1. Load
fixations.csv2. Sort fixations by
start_timestamp3. Convert
norm_pos_x and norm_pos_y into pixel coordinates on the panorama image4. Draw fixation dots (size proportional to
duration) and a connecting line between consecutive fixations in temporal order.This static plot is the “headline figure” for students: it turns raw points into an interpretable behavioral trace.
Panorama image and AOI definition
Download the panorama image for this tutorial provided above.
How this AOI was defined for the tutorial: The panorama used in the reference analysis is 4096 × 2048 pixels (width × height). The avatar region is a rectangle in pixel coordinates of the original image, with the origin at the top-left (x increases to the right, y increases downward): left = 885, right = 1162, top = 873, bottom = 1158. The script scales these numbers to match the actual width and height of your
Getting these coordinates in Adobe Illustrator: Open the image at full resolution and confirm the document size in pixels. Set Units to Pixels (for example Edit → Preferences → Units on Windows, or Illustrator → Settings → Units on Mac). Use the Rectangle Tool to draw a box over the region of interest. With the rectangle selected, read X, Y, W, and H in the Transform panel (or use Window → Info while adjusting the shape). Convert to left / right / top / bottom in pixels if needed (for example: right = left + width, bottom = top + height).
How this AOI was defined for the tutorial: The panorama used in the reference analysis is 4096 × 2048 pixels (width × height). The avatar region is a rectangle in pixel coordinates of the original image, with the origin at the top-left (x increases to the right, y increases downward): left = 885, right = 1162, top = 873, bottom = 1158. The script scales these numbers to match the actual width and height of your
--image file when you run it.Getting these coordinates in Adobe Illustrator: Open the image at full resolution and confirm the document size in pixels. Set Units to Pixels (for example Edit → Preferences → Units on Windows, or Illustrator → Settings → Units on Mac). Use the Rectangle Tool to draw a box over the region of interest. With the rectangle selected, read X, Y, W, and H in the Transform panel (or use Window → Info while adjusting the shape). Convert to left / right / top / bottom in pixels if needed (for example: right = left + width, bottom = top + height).
Step 2.1 Create an AOI-aware Scanpath (avatar AOI)
In this step, we use the avatar AOI definition from the heatmap analysis and turn fixations into an AOI sequence:
1. Filter fixations to the first
2. Determine for each fixation whether it falls inside the avatar AOI rectangle in the same calibrated pixel coordinates as the scanpath overlay (the same shift used for the heatmap-style display—not raw norm→image mapping alone)
3. Create an AOI-aware scanpath overlay: AOI fixations are shown in a different color than “elsewhere” fixations; the avatar AOI rectangle is drawn on top of the panorama image
4. Save an “AOI sequence” plot (
Learning outcome: students can connect where (AOI vs elsewhere) with when (the fixation sequence).
1. Filter fixations to the first
2 minutes (matches the heatmap/AOI analysis window)2. Determine for each fixation whether it falls inside the avatar AOI rectangle in the same calibrated pixel coordinates as the scanpath overlay (the same shift used for the heatmap-style display—not raw norm→image mapping alone)
3. Create an AOI-aware scanpath overlay: AOI fixations are shown in a different color than “elsewhere” fixations; the avatar AOI rectangle is drawn on top of the panorama image

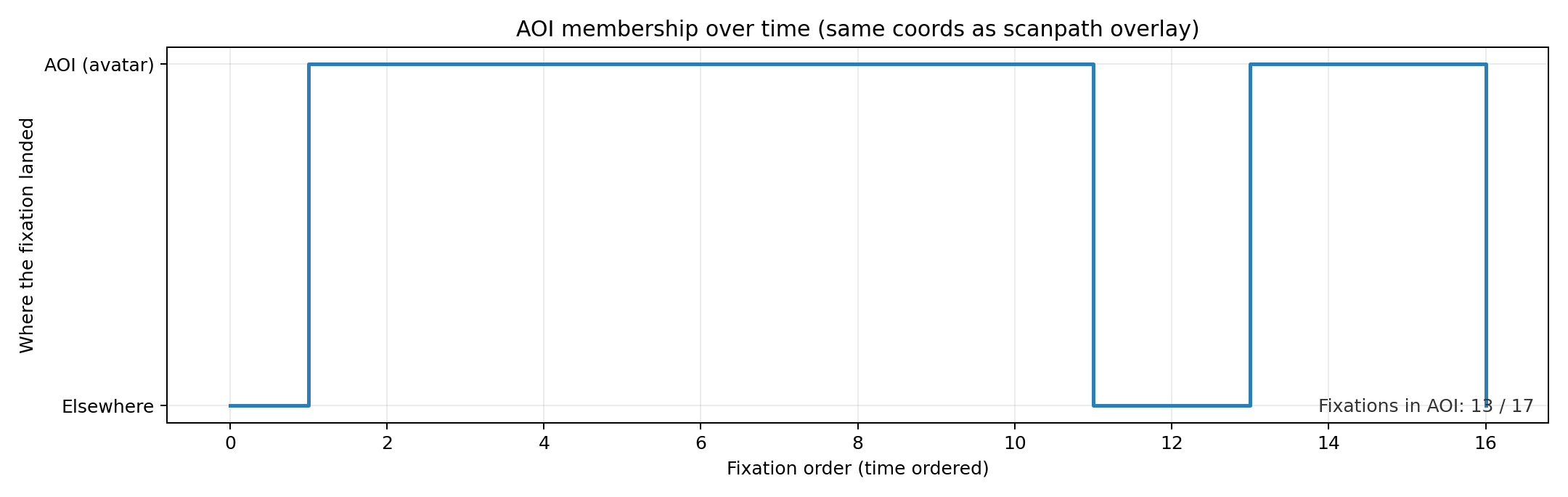

4. Save an “AOI sequence” plot (
aoi_sequence.png): a step plot of AOI vs elsewhere over fixation order, with a small caption counting how many fixations landed in the AOI (this should match the orange vs blue split on scanpath_static.png)Learning outcome: students can connect where (AOI vs elsewhere) with when (the fixation sequence).

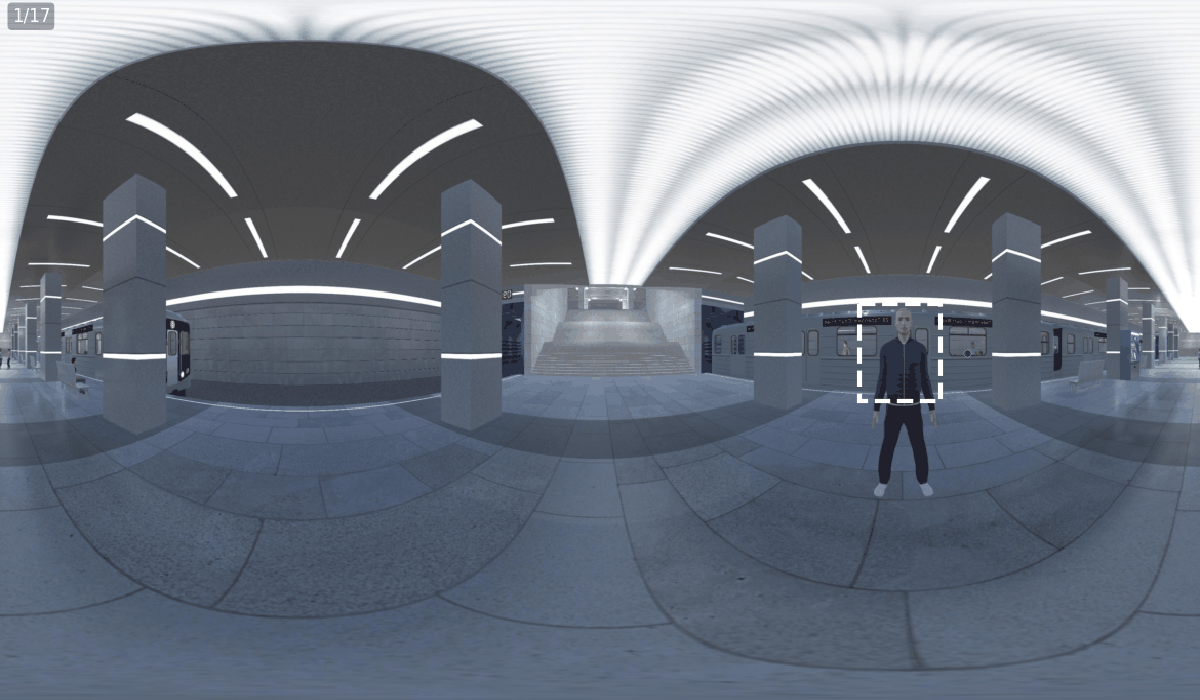

Step 3 Create a Scanpath Replay Animation (Fixation-by-Fixation)
1. Decide a maximum number of fixations to animate (keeps the GIF readable)
2. For each animation frame, plot the scanpath up to that fixation index
3. Save a GIF so students can “watch” attention shift over the panorama
If GIF creation is not supported on your system, the script will still produce the static scanpath.
2. For each animation frame, plot the scanpath up to that fixation index
3. Save a GIF so students can “watch” attention shift over the panorama
If GIF creation is not supported on your system, the script will still produce the static scanpath.
Step 4 Run the Script
Option A (portable, minimal) — put
Option B (best visualization with an image overlay)
Option C (AOI-aware scanpath for the avatar AOI)
Expected output files (saved automatically to your
-
-
-
-
fixations.csv in the same folder as the script and run:python scanpath_storytelling.py --fixations "fixations.csv"Option B (best visualization with an image overlay)
python scanpath_storytelling.py --fixations "fixations.csv" --image "panorama.jpg"Option C (AOI-aware scanpath for the avatar AOI)
python scanpath_storytelling.py --fixations "fixations.csv" --image "panorama.jpg" --aoi-avatar --gifExpected output files (saved automatically to your
outputs folder):-
scanpath_static.png-
fixation_durations.png-
Step 5 Code
Use the script file
scanpath_storytelling.py. The script uses fixation timestamps to order fixations, and the normalized fixation coordinates to place them on the panorama.
"""
@author: Fjorda
"""
from __future__ import annotations
import argparse
from pathlib import Path
from typing import Tuple
import matplotlib.pyplot as plt
import matplotlib as mpl
import numpy as np
import pandas as pd
from matplotlib.patches import Rectangle
# ---- Avatar AOI configuration (pixel rectangle on the panorama as stored) ----
IMG_W = 4096
IMG_H = 2048
FIRST_2_MIN_SEC_DEFAULT = 120.0
# AOI (avatar) rectangle in original image coords: x [885, 1162], y [873, 1158]
AOI_X_LEFT = 885
AOI_X_RIGHT = 1162
AOI_Y_TOP = 873
AOI_Y_BOTTOM = 1158
AOI_CENTER_NORM_X = (AOI_X_LEFT + AOI_X_RIGHT) / 2.0 / IMG_W
AOI_CENTER_NORM_Y = 1.0 - (AOI_Y_TOP + AOI_Y_BOTTOM) / 2.0 / IMG_H
def aoi_x_display_edges(W: int) -> Tuple[float, float]:
"""
AOI left/right in the same horizontal data coordinates as map_to_panorama_pixels()
"""
scale_x = W / IMG_W
raw_left = AOI_X_LEFT * scale_x
raw_right = AOI_X_RIGHT * scale_x
return (W - 1) - raw_right, (W - 1) - raw_left
def parse_args():
script_dir = Path(__file__).resolve().parent
parser = argparse.ArgumentParser(
description="Create static and animated scanpath plots from Pupil Labs fixations.csv."
)
parser.add_argument(
"--fixations",
type=Path,
default=script_dir / "fixations.csv",
help="Path to fixations.csv (default: script folder/fixations.csv).",
)
parser.add_argument(
"--image",
type=Path,
default=None,
help="Optional panorama image (panorama/screenshot) to overlay scanpath on.",
)
parser.add_argument(
"--out-dir",
type=Path,
default=script_dir / "outputs",
help="Output folder (default: script folder/outputs).",
)
parser.add_argument(
"--confidence-threshold",
type=float,
default=0.5,
help="Filter fixations by confidence if the column exists.",
)
parser.add_argument(
"--max-fixations",
type=int,
default=80,
help="Maximum number of fixations to use for plotting/animation.",
)
parser.add_argument(
"--aoi-avatar",
action="store_true",
dest="aoi_avatar",
help="Enable avatar AOI-aware scanpath (colors points by AOI membership and draws AOI rectangle on the image).",
)
parser.add_argument(
"--aoi-first2min-seconds",
type=float,
default=FIRST_2_MIN_SEC_DEFAULT,
dest="aoi_first2min_seconds",
help="Seconds from the first fixation start to consider for the AOI-aware scanpath.",
)
parser.add_argument(
"--gif",
action="store_true",
help="If set, attempt to write a GIF replay (requires Pillow/matplotlib support).",
)
parser.add_argument(
"--gif-frames",
type=int,
default=60,
help="Number of animation frames (reduced for speed/readability).",
)
return parser.parse_args()
def load_fixations(fix_path: Path, conf_threshold: float, max_fixations: int) -> pd.DataFrame:
fix = pd.read_csv(fix_path)
required = {"start_timestamp", "duration", "norm_pos_x", "norm_pos_y"}
missing = required - set(fix.columns)
if missing:
raise ValueError(f"Missing required columns in fixations.csv: {sorted(missing)}")
# Optional confidence filtering.
if "confidence" in fix.columns:
fix = fix[fix["confidence"] >= conf_threshold].copy()
fix = fix.dropna(subset=["start_timestamp", "duration", "norm_pos_x", "norm_pos_y"]).copy()
fix = fix.sort_values("start_timestamp").reset_index(drop=True)
if max_fixations is not None and len(fix) > max_fixations:
fix = fix.iloc[:max_fixations].copy()
return fix
def norm_to_pixels(norm_x: np.ndarray, norm_y: np.ndarray, size: Tuple[int, int]) -> Tuple[np.ndarray, np.ndarray]:
"""
Map normalized coordinates (0..1) to pixel coordinates.
Assumption for Pupil Labs exports: norm_pos_y increases downward (screen coordinate).
"""
width, height = size
x_pix = norm_x * width
y_pix = norm_y * height
return x_pix, y_pix
def filter_first_seconds_by_timestamp(fix: pd.DataFrame, seconds: float) -> pd.DataFrame:
if fix.empty or "start_timestamp" not in fix.columns:
return fix
fix = fix.copy()
fix["start_timestamp"] = pd.to_numeric(fix["start_timestamp"], errors="coerce")
fix = fix.dropna(subset=["start_timestamp"]).copy()
if fix.empty:
return fix
t0 = float(fix["start_timestamp"].min())
mask = fix["start_timestamp"].to_numpy() <= (t0 + float(seconds))
return fix.loc[mask].copy()
def avatar_aoi_mask(
fix: pd.DataFrame,
W: int | None = None,
H: int | None = None,
shift_x: float | None = None,
shift_y: float | None = None,
) -> np.ndarray:
"""
AOI membership in the same pixel space as the AOI scanpath overlay:
`map_to_panorama_pixels` + scaled rectangle from `draw_avatar_aoi_rect`.
The old raw norm→4096×2048 test ignored calibration shifts, so every fixation could
be marked "elsewhere" while still plotting inside the AOI box.
If W/H are omitted, uses IMG_W/IMG_H (full panorama resolution). If shifts are
omitted, uses `aoi_calibration_shift(fix)`.
"""
if W is None:
W = IMG_W
if H is None:
H = IMG_H
if shift_x is None or shift_y is None:
shift_x, shift_y = aoi_calibration_shift(fix)
px_x, px_y = map_to_panorama_pixels(fix, W=W, H=H, shift_x=shift_x, shift_y=shift_y)
left, right = aoi_x_display_edges(W)
scale_y = H / IMG_H
top = AOI_Y_TOP * scale_y
bottom = AOI_Y_BOTTOM * scale_y
y_lo = min(top, bottom)
y_hi = max(top, bottom)
return (px_x >= left) & (px_x <= right) & (px_y >= y_lo) & (px_y <= y_hi)
def aoi_calibration_shift(fix: pd.DataFrame) -> Tuple[float, float]:
"""
Calibrate display coordinates so the median fixation lands at the AOI center,
matching your heatmap approach (shift_x/shift_y).
"""
norm_x = np.clip(fix["norm_pos_x"].to_numpy(dtype=float), 0.0, 1.0)
norm_y_display = 1.0 - np.clip(fix["norm_pos_y"].to_numpy(dtype=float), 0.0, 1.0)
if norm_x.size == 0 or norm_y_display.size == 0:
return 0.0, 0.0
return AOI_CENTER_NORM_X - float(np.median(norm_x)), AOI_CENTER_NORM_Y - float(np.median(norm_y_display))
def map_to_panorama_pixels(
fix: pd.DataFrame,
W: int,
H: int,
shift_x: float,
shift_y: float,
) -> Tuple[np.ndarray, np.ndarray]:
"""
Map fixations to pixel coords on the panorama image as loaded.
Uses display-style vertical axis (origin at top): norm_y_display = 1 - norm_pos_y,
plus shift_x/shift_y calibration. Horizontal position is mirrored relative to the
old heatmap pipeline so that coordinates match the file orientation students see
(panorama panorama as stored on disk) instead of a left-right mirrored image.
"""
norm_x = np.clip(fix["norm_pos_x"].to_numpy(dtype=float), 0.0, 1.0)
norm_y_display = 1.0 - np.clip(fix["norm_pos_y"].to_numpy(dtype=float), 0.0, 1.0)
img_x = np.clip(norm_x + shift_x, 0.0, 1.0)
img_y = np.clip(norm_y_display + shift_y, 0.0, 1.0)
px_x = img_x * (W - 1)
px_y = img_y * (H - 1)
px_x = (W - 1) - px_x
return px_x, px_y
def draw_avatar_aoi_rect(ax, H: int, W: int) -> None:
"""
Draw avatar AOI on ax.imshow(..., extent=[0, W, H, 0]), ylim(H, 0).
Horizontal edges match map_to_panorama_pixels (same x mirror as gaze).
"""
left, right = aoi_x_display_edges(W)
scale_y = H / IMG_H
top = AOI_Y_TOP * scale_y
bottom = AOI_Y_BOTTOM * scale_y
y_min = min(top, bottom)
y_max = max(top, bottom)
rect_height = y_max - y_min
rect_bottom_axis = H - y_max
ax.add_patch(
Rectangle(
(left, rect_bottom_axis),
right - left,
rect_height,
fill=False,
edgecolor="white",
linewidth=3,
linestyle="--",
)
)
def plot_aoi_sequence(in_aoi: np.ndarray, out_path: Path):
fig, ax = plt.subplots(figsize=(12, 3.8))
seq = in_aoi.astype(int)
x = np.arange(len(seq))
ax.step(x, seq, where="post", linewidth=2.0, alpha=0.95)
ax.set_yticks([0, 1])
ax.set_yticklabels(["Elsewhere", "AOI (avatar)"])
ax.set_xlabel("Fixation order (time ordered)")
ax.set_ylabel("Where the fixation landed")
n_in = int(np.sum(in_aoi))
n_tot = len(in_aoi)
ax.set_title("AOI membership over time (same coords as scanpath overlay)")
ax.text(
0.99,
0.02,
f"Fixations in AOI: {n_in} / {n_tot}",
transform=ax.transAxes,
ha="right",
va="bottom",
fontsize=10,
color="0.2",
)
ax.grid(alpha=0.25)
ax.set_ylim(-0.05, 1.05)
fig.tight_layout()
fig.savefig(out_path, dpi=180)
plt.close(fig)
def read_image(image_path: Path):
from PIL import Image
img = Image.open(image_path)
arr = np.asarray(img)
# size returns (width, height)
size = (img.size[0], img.size[1])
return arr, size
def plot_static_scanpath(
fix: pd.DataFrame,
out_path: Path,
image_path: Path | None = None,
aoi_avatar: bool = False,
aoi_first2min_seconds: float = FIRST_2_MIN_SEC_DEFAULT,
):
mpl.rcParams.update({"figure.autolayout": True})
if aoi_avatar:
fix = filter_first_seconds_by_timestamp(fix, aoi_first2min_seconds)
def savefig_transparent(fig, path: Path):
fig.patch.set_alpha(0.0)
fig.savefig(path, dpi=180, transparent=True, bbox_inches="tight", pad_inches=0.05)
plt.close(fig)
def savefig_with_scene_bg(fig, ax, path: Path, bg_rgb: tuple[int, int, int]):
# Save without transparency and force the background to match the panorama corner.
fig.patch.set_alpha(1.0)
fig.patch.set_facecolor(bg_rgb)
ax.set_facecolor(bg_rgb)
fig.savefig(path, dpi=180, transparent=False, bbox_inches="tight", pad_inches=0.0)
plt.close(fig)
if image_path is not None and not aoi_avatar:
img_arr, size = read_image(image_path)
x_pix, y_pix = norm_to_pixels(fix["norm_pos_x"].to_numpy(), fix["norm_pos_y"].to_numpy(), size)
fig, ax = plt.subplots(figsize=(12, 7))
ax.set_facecolor("none")
ax.imshow(img_arr)
ax.set_axis_off()
ax.set_title("Scanpath on panorama", pad=10)
# Scale marker size by duration.
durations = fix["duration"].to_numpy()
dur_scaled = (durations - durations.min()) / max(durations.max() - durations.min(), 1e-9)
sizes = 20 + dur_scaled * 160
order = np.arange(len(fix))
cmap = plt.get_cmap("viridis")
ax.scatter(x_pix, y_pix, s=sizes, c=order, cmap=cmap, alpha=0.85, edgecolors="white", linewidths=0.3)
# Connecting line in temporal order.
ax.plot(x_pix, y_pix, color="white", linewidth=1.2, alpha=0.55, zorder=3)
for i in range(1, len(fix)):
ax.plot(
x_pix[i - 1 : i + 1],
y_pix[i - 1 : i + 1],
color=cmap(order[i] / max(order.max(), 1)),
linewidth=2.2,
alpha=0.65,
zorder=4,
)
savefig_transparent(fig, out_path)
elif image_path is not None and aoi_avatar:
img_arr, _ = read_image(image_path)
H, W = img_arr.shape[0], img_arr.shape[1]
shift_x, shift_y = aoi_calibration_shift(fix)
in_aoi = avatar_aoi_mask(fix, W, H, shift_x, shift_y)
px_x, px_y = map_to_panorama_pixels(fix, W=W, H=H, shift_x=shift_x, shift_y=shift_y)
durations = fix["duration"].to_numpy(dtype=float)
dur_scaled = (durations - durations.min()) / max(durations.max() - durations.min(), 1e-9)
sizes = 20 + dur_scaled * 160
order = np.arange(len(fix))
fig, ax = plt.subplots(figsize=(12, 7))
bg = img_arr[0, 0]
# matplotlib expects colors in 0..1 range
bg_rgb = tuple(float(x) / 255.0 for x in bg[:3])
ax.set_facecolor(bg_rgb)
# Make sure axes fill the entire figure (prevents bottom/side margins).
fig.subplots_adjust(left=0, right=1, bottom=0, top=1)
ax.set_position([0, 0, 1, 1])
ax.imshow(img_arr, extent=[0, W, H, 0], aspect="auto", interpolation="bilinear")
ax.set_xlim(0, W)
ax.set_ylim(H, 0)
ax.set_aspect("auto")
ax.set_axis_off()
# Put a short label inside the axes to avoid reserving outer margins.
ax.text(
0.01,
0.99,
"AOI-aware scanpath on panorama",
transform=ax.transAxes,
color="white",
fontsize=12,
ha="left",
va="top",
bbox=dict(facecolor="black", alpha=0.35, edgecolor="none", boxstyle="round,pad=0.25"),
zorder=10,
)
draw_avatar_aoi_rect(ax=ax, H=H, W=W)
# Connecting line in temporal order (neutral color).
ax.plot(px_x, px_y, color="white", linewidth=1.1, alpha=0.45, zorder=2)
# Draw AOI fixations and elsewhere fixations differently.
cmap = plt.get_cmap("viridis")
ax.scatter(
px_x[~in_aoi],
px_y[~in_aoi],
s=sizes[~in_aoi],
c=order[~in_aoi],
cmap=cmap,
alpha=0.75,
edgecolors="white",
linewidths=0.25,
zorder=5,
label="Elsewhere fixations",
)
ax.scatter(
px_x[in_aoi],
px_y[in_aoi],
s=sizes[in_aoi],
c=order[in_aoi],
cmap=plt.get_cmap("autumn"),
alpha=0.95,
edgecolors="white",
linewidths=0.25,
zorder=6,
label="AOI (avatar) fixations",
)
savefig_with_scene_bg(fig=fig, ax=ax, path=out_path, bg_rgb=bg_rgb)
else:
# Fallback: scanpath in normalized coordinate space.
x_pix = fix["norm_pos_x"].to_numpy()
y_pix = fix["norm_pos_y"].to_numpy()
fig, ax = plt.subplots(figsize=(8, 6))
ax.set_facecolor("none")
if aoi_avatar:
in_aoi = avatar_aoi_mask(fix)
ax.set_title("AOI-aware scanpath in normalized coordinates")
ax.scatter(x_pix[~in_aoi], y_pix[~in_aoi], s=20, alpha=0.35, c="tab:blue", label="Elsewhere")
ax.scatter(x_pix[in_aoi], y_pix[in_aoi], s=20, alpha=0.8, c="tab:orange", label="AOI (avatar)")
ax.legend(loc="best", frameon=False)
else:
ax.set_title("Scanpath in Normalized Coordinates")
ax.set_xlabel("norm_pos_x")
ax.set_ylabel("norm_pos_y")
ax.grid(alpha=0.25)
durations = fix["duration"].to_numpy(dtype=float)
dur_scaled = (durations - durations.min()) / max(durations.max() - durations.min(), 1e-9)
sizes = 20 + dur_scaled * 160
if not aoi_avatar:
order = np.arange(len(fix))
cmap = plt.get_cmap("viridis")
ax.scatter(x_pix, y_pix, s=sizes, c=order, cmap=cmap, alpha=0.85, edgecolors="white", linewidths=0.3)
ax.plot(x_pix, y_pix, color="gray", linewidth=1.2, alpha=0.6)
else:
ax.scatter(x_pix[in_aoi], y_pix[in_aoi], s=sizes[in_aoi], alpha=0.85, c="tab:orange", edgecolors="white", linewidths=0.25)
ax.scatter(x_pix[~in_aoi], y_pix[~in_aoi], s=sizes[~in_aoi], alpha=0.55, c="tab:blue", edgecolors="white", linewidths=0.25)
savefig_transparent(fig, out_path)
def plot_fixation_durations(fix: pd.DataFrame, out_path: Path):
fig, ax = plt.subplots(figsize=(12, 4.8))
durations = fix["duration"].to_numpy()
ax.plot(np.arange(len(durations)), durations, linewidth=1.5, alpha=0.9)
ax.set_title("Fixation Durations by Temporal Order")
ax.set_xlabel("Fixation index (time ordered)")
ax.set_ylabel("Duration (ms)")
ax.grid(alpha=0.25)
fig.savefig(out_path, dpi=180)
plt.close(fig)
def make_replay_gif(
fix: pd.DataFrame,
out_path: Path,
image_path: Path,
max_frames: int,
aoi_avatar: bool = False,
aoi_first2min_seconds: float = FIRST_2_MIN_SEC_DEFAULT,
):
"""
Create a scanpath replay GIF by progressively plotting fixations.
"""
from PIL import Image
if aoi_avatar:
fix = filter_first_seconds_by_timestamp(fix, aoi_first2min_seconds)
img_arr, _ = read_image(image_path)
H, W = img_arr.shape[0], img_arr.shape[1]
shift_x, shift_y = aoi_calibration_shift(fix)
in_aoi = avatar_aoi_mask(fix, W, H, shift_x, shift_y)
x_pix, y_pix = map_to_panorama_pixels(fix, W=W, H=H, shift_x=shift_x, shift_y=shift_y)
else:
img_arr, size = read_image(image_path)
x_pix, y_pix = norm_to_pixels(fix["norm_pos_x"].to_numpy(), fix["norm_pos_y"].to_numpy(), size)
durations = fix["duration"].to_numpy()
dur_scaled = (durations - durations.min()) / max(durations.max() - durations.min(), 1e-9)
sizes = 20 + dur_scaled * 160
order = np.arange(len(fix))
cmap = plt.get_cmap("viridis")
# Pick frame indices spread across the fixation sequence.
if len(fix) <= 1:
frame_indices = [0]
else:
frame_indices = np.linspace(0, len(fix) - 1, num=min(max_frames, len(fix))).astype(int).tolist()
frames = []
for k, idx in enumerate(frame_indices):
fig, ax = plt.subplots(figsize=(12, 7))
# Match any leftover margins to the panorama corner color (hides borders).
corner = np.asarray(img_arr)[0, 0]
corner_rgb = corner[:3] if corner.shape[0] >= 3 else np.array([0, 0, 0], dtype=float)
if np.max(corner_rgb) > 1.0:
corner_rgb = corner_rgb / 255.0
corner_rgb_tuple = tuple(float(x) for x in corner_rgb)
fig.patch.set_alpha(1.0)
fig.patch.set_facecolor(corner_rgb_tuple)
ax.set_facecolor(corner_rgb_tuple)
fig.subplots_adjust(left=0, right=1, bottom=0, top=1) # remove white margins
ax.set_position([0, 0, 1, 1])
if aoi_avatar:
ax.imshow(img_arr, extent=[0, W, H, 0], aspect="auto", interpolation="bilinear")
ax.set_xlim(0, W)
ax.set_ylim(H, 0)
ax.set_aspect("auto")
ax.set_axis_off()
draw_avatar_aoi_rect(ax=ax, H=H, W=W)
else:
ax.imshow(img_arr)
ax.set_axis_off()
# Plot the path up to idx.
ax.plot(x_pix[: idx + 1], y_pix[: idx + 1], color="white", linewidth=1.2, alpha=0.45, zorder=3)
for i in range(1, idx + 1):
ax.plot(
x_pix[i - 1 : i + 1],
y_pix[i - 1 : i + 1],
color=cmap(order[i] / max(order.max(), 1)),
linewidth=2.2,
alpha=0.65,
zorder=4,
)
# Plot fixations up to idx.
if aoi_avatar:
mask_up_to = in_aoi[: idx + 1]
ax.scatter(
x_pix[: idx + 1][~mask_up_to],
y_pix[: idx + 1][~mask_up_to],
s=sizes[: idx + 1][~mask_up_to],
c=order[: idx + 1][~mask_up_to],
cmap=cmap,
alpha=0.75,
edgecolors="white",
linewidths=0.25,
zorder=5,
)
ax.scatter(
x_pix[: idx + 1][mask_up_to],
y_pix[: idx + 1][mask_up_to],
s=sizes[: idx + 1][mask_up_to],
c=order[: idx + 1][mask_up_to],
cmap=plt.get_cmap("autumn"),
alpha=0.95,
edgecolors="white",
linewidths=0.25,
zorder=6,
)
else:
ax.scatter(
x_pix[: idx + 1],
y_pix[: idx + 1],
s=sizes[: idx + 1],
c=order[: idx + 1],
cmap=cmap,
alpha=0.9,
edgecolors="white",
linewidths=0.3,
zorder=5,
)
# Draw a small caption (frame progression).
ax.text(0.01, 0.99, f"{k+1}/{len(frame_indices)}", transform=ax.transAxes, color="white",
fontsize=12, ha="left", va="top",
bbox=dict(facecolor="black", alpha=0.35, edgecolor="none", boxstyle="round,pad=0.25"))
# Convert figure to image frame.
fig.canvas.draw()
# Use RGB buffer to keep GIF look/resolution consistent.
frame = np.frombuffer(fig.canvas.tostring_rgb(), dtype=np.uint8)
frame = frame.reshape(fig.canvas.get_width_height()[::-1] + (3,))
frames.append(frame)
plt.close(fig)
# Crop away top/bottom/side margins so the panorama fills the whole canvas.
# This keeps the output GIF resolution unchanged (1200x700) while removing
# the visible "background band" around the panorama.
if frames:
target_h, target_w = frames[0].shape[0], frames[0].shape[1]
bg = frames[0][0, 0]
diff = np.max(np.abs(frames[0].astype(int) - np.array(bg).astype(int)), axis=2)
mask = diff > 3
ys, xs = np.where(mask)
if xs.size > 0 and ys.size > 0:
x0, x1 = int(xs.min()), int(xs.max()) + 1
y0, y1 = int(ys.min()), int(ys.max()) + 1
if (x0 > 0 or y0 > 0) and (x1 < target_w or y1 < target_h):
from PIL import Image
resized_frames = []
for fr in frames:
cropped = fr[y0:y1, x0:x1, :]
im = Image.fromarray(cropped)
im = im.resize((target_w, target_h), resample=Image.NEAREST)
resized_frames.append(np.asarray(im))
frames = resized_frames
# Save with PIL.
pil_frames = [Image.fromarray(f) for f in frames]
pil_frames[0].save(
out_path,
save_all=True,
append_images=pil_frames[1:],
duration=90,
loop=0,
)
def main():
args = parse_args()
fix_path = args.fixations.expanduser().resolve()
if not fix_path.exists():
raise FileNotFoundError(f"Missing fixations.csv: {fix_path}")
out_dir = args.out_dir.expanduser().resolve()
out_dir.mkdir(parents=True, exist_ok=True)
image_path = None
if args.image is not None:
image_path = args.image.expanduser().resolve()
if not image_path.exists():
raise FileNotFoundError(f"Missing image: {image_path}")
fix = load_fixations(
fix_path=fix_path,
conf_threshold=args.confidence_threshold,
max_fixations=args.max_fixations,
)
# Static overlay (optionally AOI-aware for avatar AOI)
plot_static_scanpath(
fix=fix,
out_path=out_dir / "scanpath_static.png",
image_path=image_path,
aoi_avatar=args.aoi_avatar,
aoi_first2min_seconds=args.aoi_first2min_seconds,
)
# Duration summary
plot_fixation_durations(fix=fix, out_path=out_dir / "fixation_durations.png")
# AOI sequence visualization (avatar AOI) if requested.
if args.aoi_avatar:
fix_aoi = filter_first_seconds_by_timestamp(fix, args.aoi_first2min_seconds)
if image_path is not None:
img_arr, _ = read_image(image_path)
H_img, W_img = img_arr.shape[0], img_arr.shape[1]
sx, sy = aoi_calibration_shift(fix_aoi)
in_aoi = avatar_aoi_mask(fix_aoi, W_img, H_img, sx, sy)
else:
in_aoi = avatar_aoi_mask(fix_aoi)
plot_aoi_sequence(in_aoi=in_aoi, out_path=out_dir / "aoi_sequence.png")
# Optional GIF replay
if args.gif and image_path is not None:
try:
make_replay_gif(
fix=fix,
out_path=out_dir / "scanpath_replay.gif",
image_path=image_path,
max_frames=args.gif_frames,
aoi_avatar=args.aoi_avatar,
aoi_first2min_seconds=args.aoi_first2min_seconds,
)
print("Saved scanpath_replay.gif")
except Exception as e:
print(f"GIF creation failed (continuing without GIF). Reason: {e}")
elif args.gif and image_path is None:
print("GIF replay requested but no --image was provided; skipping GIF.")
print(f"Fixations used: {len(fix):,}")
print(f"Outputs saved to: {out_dir}")
if __name__ == "__main__":
main()
After you run the script with
--image (and optionally --aoi-avatar and --gif), you will obtain the scanpath outputs listed in Step 4. Example figures below use the same image paths as on this site (you can replace them with your generated plots when you upload assets).
Conclusions
- A scanpath turns fixation events into an intuitive sequence of attention.
- Fixation duration is a useful visual cue: longer fixations often indicate higher processing effort.
- The animated replay helps students connect timing (sequence) with spatial attention (where they looked).
- This tutorial sets up the next analyses (heatmaps, AOIs, and time-locked attention metrics).
