Pairwise Attention Comparison with Scanpath GIF in Python using Pupil Labs Eye Tracking
This guide explains how to compare two participants by mapping fixations onto
By the end, you will generate:
-
-
Note. This code works with Pupil Labs
Download example fixations (participant A)
Download example fixations (participant B)
Download Panorama Image

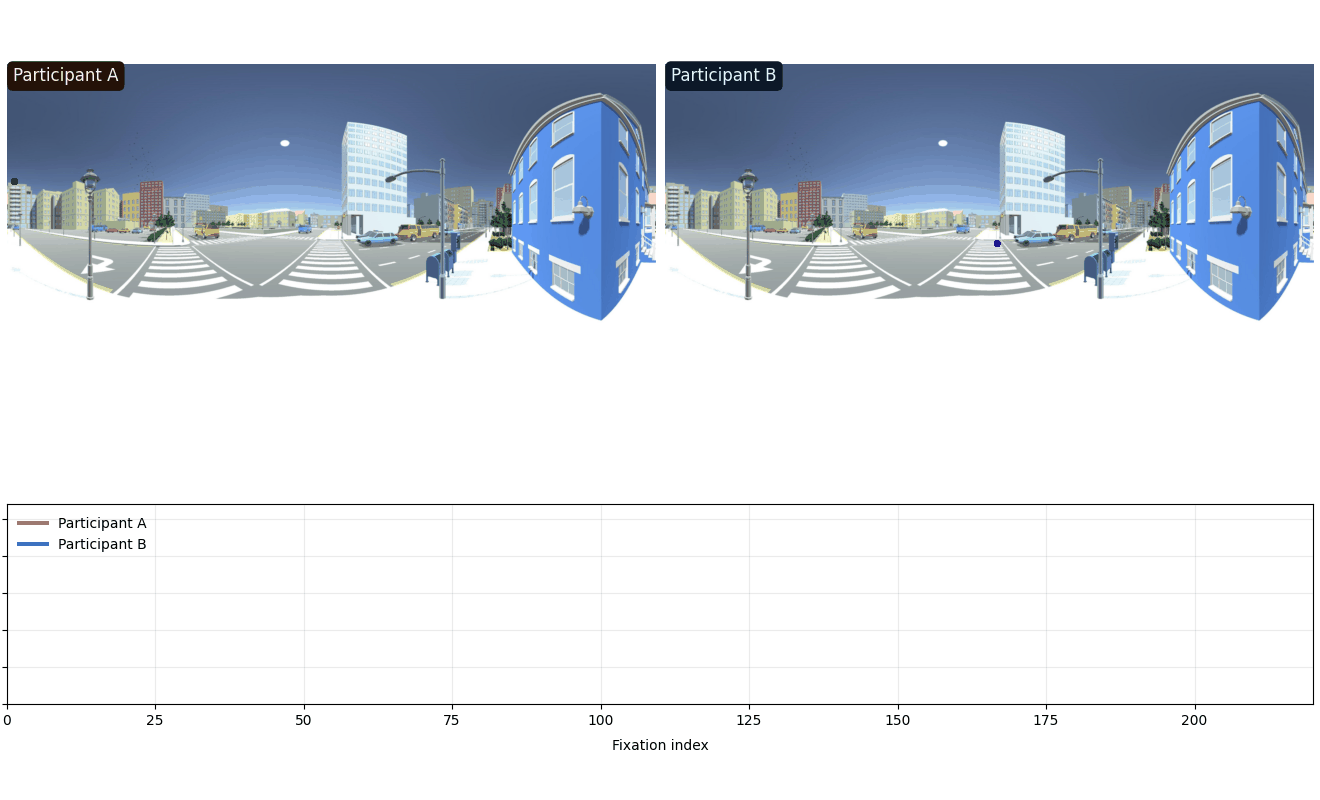

a panorama image and exporting an animated GIF with dual scanpaths and cumulative fixation time.
By the end, you will generate:
-
-
pair_summary.csv (compact two-row summary)
Note. This code works with Pupil Labs
fixations.csv exports. It uses median gaze of both participants → image center.
Download example fixations (participant A)
Download example fixations (participant B)
Download Panorama Image
Requirements
- Anaconda Python Development Environment
- Two
-
- Python packages:
-
-
-
-
- Two
fixations.csv files -
PanoramaSc7.jpg under EyeTracking/ (or pass --panorama)- Python packages:
-
pandas-
numpy-
matplotlib-
Pillow
Setup
1. Install Anaconda if needed.
2. Open Spyder, Jupyter Notebook, or VS Code.
3. Put your data in reach:
- two
-
4. Default outputs go to
To use Spyder, install Anaconda, run it, and launch Spyder. If you see Install instead of Launch for Spyder, install Spyder first.
2. Open Spyder, Jupyter Notebook, or VS Code.
3. Put your data in reach:
- two
fixations.csv paths (participant A and B)-
PanoramaSc7.jpg in EyeTracking/ or pass --panorama4. Default outputs go to
outputs_tutorial5_pair_sc7/ next to the script unless you pass --out-dir.To use Spyder, install Anaconda, run it, and launch Spyder. If you see Install instead of Launch for Spyder, install Spyder first.
Step 1 Choose the two datasets
Required arguments:
-
-
Optional:
Important columns in
-
--fixations-a — participant A fixations.csv-
--fixations-b — participant B fixations.csvOptional:
--label-a / --label-b (defaults: Participant A / Participant B).Important columns in
fixations.csv: start_timestamp, duration, norm_pos_x, norm_pos_y; confidence is used when present to filter low-quality rows.
Step 2 Calibration and mapping
The script computes a combined shift so the median normalized gaze of both tracks aligns with the image center (
0.5, 0.5 in display-normalized space). Fixations are then drawn on the panorama with scanpath polylines, time-ordered scatter (size reflects fixation duration), and a lower panel of cumulative fixation time versus fixation index.
Step 3 Build the GIF and summary
1. Load both fixation tables and the panorama
2. Apply the combined median-to-center alignment
3. Render sampled frames and write
4. Save
Learning outcome: you can compare where and how long two people looked in the same scene, in time.
2. Apply the combined median-to-center alignment
3. Render sampled frames and write
attention_comparison.gif4. Save
pair_summary.csv with fixation counts and timing stats per participantLearning outcome: you can compare where and how long two people looked in the same scene, in time.
Step 4 Run the script
Adjust paths to your exports:
Optional:
Expected output files (default folder):
-
-
Optional:
--panorama PATH, --out-dir PATH, --gif-fps N, --gif-frames N, --confidence-threshold, --max-fixations.Expected output files (default folder):
-
attention_comparison.gif-
pair_summary.csv
Step 5 Code
Use the script file. It reads
fixations.csv, aligns gaze using the combined median, renders dual scanpaths on PanoramaSc7.jpg, and writes the GIF plus a two-row CSV summary.
"""
@author: Fjorda
"""
from __future__ import annotations
import argparse
from pathlib import Path
from typing import Tuple
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from PIL import Image
# Legend / cumulative lines / scanpath polylines (single source of truth).
PARTICIPANT_A_ACCENT = "#ff6b00"
PARTICIPANT_B_ACCENT = "#0080ff"
def save_pair_gif_frames(frames: list, out_path: Path, duration_ms: int) -> None:
"""Write GIF; disable dithering; explicit per-frame duration for stable playback."""
n = len(frames)
if n == 0:
raise ValueError("save_pair_gif_frames: empty frame list")
dur = max(1, int(round(duration_ms)))
duration_list = [dur] * n
kw: dict = dict(save_all=True, append_images=frames[1:], loop=0, duration=duration_list)
try:
kw["dither"] = Image.Dither.NONE
except AttributeError:
pass
try:
frames[0].save(out_path, **kw)
except TypeError:
frames[0].save(
out_path,
save_all=True,
append_images=frames[1:],
loop=0,
duration=duration_list,
)
def load_fixations(path: Path, conf_threshold: float, max_fixations: int) -> pd.DataFrame:
df = pd.read_csv(path)
required = {"start_timestamp", "duration", "norm_pos_x", "norm_pos_y"}
missing = required - set(df.columns)
if missing:
raise ValueError(f"Missing required columns in {path}: {sorted(missing)}")
if "confidence" in df.columns:
df = df[df["confidence"] >= conf_threshold].copy()
df = df.dropna(subset=["start_timestamp", "duration", "norm_pos_x", "norm_pos_y"]).copy()
df = df.sort_values("start_timestamp").reset_index(drop=True)
if max_fixations and len(df) > max_fixations:
df = df.iloc[:max_fixations].copy()
return df
def map_to_panorama_pixels(
fix: pd.DataFrame, W: int, H: int, shift_x: float, shift_y: float
) -> Tuple[np.ndarray, np.ndarray]:
norm_x = np.clip(fix["norm_pos_x"].to_numpy(dtype=float), 0.0, 1.0)
norm_y_display = 1.0 - np.clip(fix["norm_pos_y"].to_numpy(dtype=float), 0.0, 1.0)
img_x = np.clip(norm_x + shift_x, 0.0, 1.0)
img_y = np.clip(norm_y_display + shift_y, 0.0, 1.0)
px_x = img_x * (W - 1)
px_y = img_y * (H - 1)
return px_x, px_y
SCRIPT_DIR = Path(__file__).resolve().parent
EYETRACKING_DIR = SCRIPT_DIR.parent
PANORAMA_CANDIDATES = [
EYETRACKING_DIR / "PanoramaSc7.jpg",
EYETRACKING_DIR / "PanoramaSc_7.jpg",
SCRIPT_DIR / "PanoramaSc7.jpg",
EYETRACKING_DIR / "Plots" / "PanoramaSc7.jpg",
]
IMG_CENTER_NORM_X = 0.5
IMG_CENTER_NORM_Y = 0.5
def parse_args() -> argparse.Namespace:
parser = argparse.ArgumentParser(
description="Tutorial: scanpath GIF on Panorama"
)
parser.add_argument("--fixations-a", type=Path, required=True, help="First fixations.csv (e.g. Sc7StreetPedestrian)")
parser.add_argument("--fixations-b", type=Path, required=True, help="Second fixations.csv")
parser.add_argument("--label-a", type=str, default="Participant A")
parser.add_argument("--label-b", type=str, default="Participant B")
parser.add_argument(
"--panorama",
type=Path,
default=None,
help="Panorama image",
)
parser.add_argument(
"--out-dir",
type=Path,
default=SCRIPT_DIR / "outputs_tutorial5_pair_sc7",
help="Output folder (default: Tutorials/outputs_tutorial5_pair_sc7)",
)
parser.add_argument("--confidence-threshold", type=float, default=0.5)
parser.add_argument("--max-fixations", type=int, default=220)
parser.add_argument("--gif-fps", type=int, default=4)
parser.add_argument("--gif-frames", type=int, default=80, help="Number of GIF frames (sampled)")
return parser.parse_args()
def find_panorama(explicit: Path | None) -> Path:
if explicit is not None:
p = explicit.expanduser().resolve()
if not p.is_file():
raise FileNotFoundError(f"Panorama not found: {p}")
return p
for cand in PANORAMA_CANDIDATES:
if cand.is_file():
return cand.resolve()
raise FileNotFoundError(
"PanoramaSc7.jpg not found. Place it under EyeTracking/ or pass --panorama PATH. "
f"Tried: {', '.join(str(c) for c in PANORAMA_CANDIDATES)}"
)
def sc7_combined_shift(fix_a: pd.DataFrame, fix_b: pd.DataFrame) -> Tuple[float, float]:
"""Align combined median gaze to image center."""
parts_x: list[np.ndarray] = []
parts_y: list[np.ndarray] = []
for fix in (fix_a, fix_b):
nx = np.clip(fix["norm_pos_x"].to_numpy(dtype=float), 0.0, 1.0)
ny_disp = 1.0 - np.clip(fix["norm_pos_y"].to_numpy(dtype=float), 0.0, 1.0)
parts_x.append(nx)
parts_y.append(ny_disp)
all_x = np.concatenate(parts_x) if parts_x else np.array([], dtype=float)
all_y = np.concatenate(parts_y) if parts_y else np.array([], dtype=float)
if all_x.size == 0:
return 0.0, 0.0
med_x = float(np.median(all_x))
med_y = float(np.median(all_y))
return IMG_CENTER_NORM_X - med_x, IMG_CENTER_NORM_Y - med_y
def build_track_sc7(
fix: pd.DataFrame, label: str, W: int, H: int, shift_x: float, shift_y: float
) -> dict:
px_x, px_y = map_to_panorama_pixels(fix, W=W, H=H, shift_x=shift_x, shift_y=shift_y)
dur_ms = fix["duration"].to_numpy(dtype=float)
cum_time_s = np.cumsum(dur_ms) / 1000.0
return {
"label": label,
"x": px_x,
"y": px_y,
"dur_ms": dur_ms,
"cum_time_s": cum_time_s,
"total_fix_time_s": float(np.sum(dur_ms) / 1000.0) if len(dur_ms) else 0.0,
"mean_dur_ms": float(np.mean(dur_ms)) if len(dur_ms) else 0.0,
"n": len(fix),
}
def _update_scanpath_mono(
x_seq: np.ndarray,
y_seq: np.ndarray,
durations: np.ndarray,
scat,
) -> None:
n = int(len(x_seq))
if n == 0:
scat.set_offsets(np.empty((0, 2), dtype=float))
scat.set_alpha(0.0)
return
scat.set_alpha(0.92)
scat.set_edgecolor("none")
scat.set_linewidths(0)
order = np.arange(n, dtype=float)
d = np.asarray(durations, dtype=float)
dur_scaled = (d - d.min()) / max(d.max() - d.min(), 1e-9)
sizes = 20.0 + dur_scaled * 160.0
scat.set_offsets(np.c_[x_seq, y_seq])
scat.set_array(order)
scat.set_sizes(sizes)
scat.set_clim(0, max(n - 1, 1))
def build_pair_gif_sc7(
track_a: dict,
track_b: dict,
panorama_rgb: np.ndarray,
out_path: Path,
fps: int,
gif_frames: int,
) -> None:
W = panorama_rgb.shape[1]
H = panorama_rgb.shape[0]
bg_rgb = (1.0, 1.0, 1.0)
xA, yA, xB, yB = track_a["x"], track_a["y"], track_b["x"], track_b["y"]
nA, nB = track_a["n"], track_b["n"]
start_k = 1
max_n = max(nA, nB)
frame_stop = max_n
frame_count = min(gif_frames, max(1, frame_stop - start_k + 1))
frame_idxs = np.unique(np.linspace(start_k, frame_stop, num=frame_count, dtype=int))
max_cum = float(
max(
track_a["cum_time_s"][-1] if nA else 0.0,
track_b["cum_time_s"][-1] if nB else 0.0,
)
)
y_pad = max(0.1, 0.07 * max(1e-9, max_cum))
fig = plt.figure(figsize=(13.2, 8.0))
gs = fig.add_gridspec(2, 2, height_ratios=[2.1, 1.0], wspace=0.015, hspace=0.22)
ax_a = fig.add_subplot(gs[0, 0])
ax_b = fig.add_subplot(gs[0, 1])
ax_line = fig.add_subplot(gs[1, :])
fig.patch.set_facecolor(bg_rgb)
panel_bg = "#0f0f14"
ax_a.set_facecolor(panel_bg)
ax_b.set_facecolor(panel_bg)
ax_line.set_facecolor(bg_rgb)
fig.subplots_adjust(left=0.005, right=0.995, bottom=0.12, top=0.98, wspace=0.015, hspace=0.22)
badge_a = dict(facecolor="#241208", edgecolor="none", boxstyle="round,pad=0.35")
badge_b = dict(facecolor="#0c1828", edgecolor="none", boxstyle="round,pad=0.35")
for ax, track, badge, txt in [
(ax_a, track_a, badge_a, "#fff0e6"),
(ax_b, track_b, badge_b, "#e6f4ff"),
]:
ax.imshow(panorama_rgb, extent=[0, W, H, 0], aspect="equal", interpolation="bilinear")
ax.set_xlim(0, W)
ax.set_ylim(H, 0)
ax.set_aspect("equal")
ax.set_axis_off()
ax.text(
0.01,
0.99,
str(track["label"]),
transform=ax.transAxes,
color=txt,
fontsize=12,
ha="left",
va="top",
bbox=badge,
zorder=50,
)
# Scanpath polylines — same accent hexes as legend (alpha only for path under scatter).
(path_a,) = ax_a.plot(
[],
[],
color=PARTICIPANT_A_ACCENT,
linewidth=1.15,
alpha=0.55,
solid_capstyle="round",
antialiased=False,
zorder=28,
)
(path_b,) = ax_b.plot(
[],
[],
color=PARTICIPANT_B_ACCENT,
linewidth=1.15,
alpha=0.55,
solid_capstyle="round",
antialiased=False,
zorder=28,
)
cmap_a = plt.get_cmap("turbo")
cmap_b = plt.get_cmap("plasma")
scat_a = ax_a.scatter(
[0],
[0],
s=[0],
c=[0],
cmap=cmap_a,
vmin=0,
vmax=1,
alpha=0.0,
edgecolors="none",
linewidths=0,
antialiased=False,
zorder=35,
)
scat_b = ax_b.scatter(
[0],
[0],
s=[0],
c=[0],
cmap=cmap_b,
vmin=0,
vmax=1,
alpha=0.0,
edgecolors="none",
linewidths=0,
antialiased=False,
zorder=35,
)
ax_line.set_xlabel("Fixation index", labelpad=8)
ax_line.set_ylabel("Cumulative fixation time (s)")
ax_line.grid(alpha=0.25)
ax_line.set_xlim(0, max_n)
ax_line.set_ylim(0.0, max_cum + y_pad)
(cumA_line,) = ax_line.plot(
[], [], color=PARTICIPANT_A_ACCENT, linewidth=2.6, label=track_a["label"], antialiased=False
)
(cumB_line,) = ax_line.plot(
[], [], color=PARTICIPANT_B_ACCENT, linewidth=2.6, label=track_b["label"], antialiased=False
)
leg = ax_line.legend(loc="upper left", frameon=False)
for h, c in zip(leg.get_lines(), (PARTICIPANT_A_ACCENT, PARTICIPANT_B_ACCENT)):
h.set_color(c)
h.set_linewidth(2.6)
h.set_antialiased(False)
durA = track_a["dur_ms"]
durB = track_b["dur_ms"]
frames = []
for k in frame_idxs:
n1 = min(k, nA)
n2 = min(k, nB)
if n1 >= 2:
path_a.set_data(xA[:n1], yA[:n1])
elif n1 == 1:
path_a.set_data([xA[0]], [yA[0]])
else:
path_a.set_data([], [])
if n2 >= 2:
path_b.set_data(xB[:n2], yB[:n2])
elif n2 == 1:
path_b.set_data([xB[0]], [yB[0]])
else:
path_b.set_data([], [])
_update_scanpath_mono(xA[:n1], yA[:n1], durA[:n1], scat_a)
_update_scanpath_mono(xB[:n2], yB[:n2], durB[:n2], scat_b)
xs1 = np.arange(n1, dtype=float)
xs2 = np.arange(n2, dtype=float)
cumA_line.set_data(xs1, track_a["cum_time_s"][:n1])
cumB_line.set_data(xs2, track_b["cum_time_s"][:n2])
fig.canvas.draw()
w, h = fig.canvas.get_width_height()
arr = np.frombuffer(fig.canvas.buffer_rgba(), dtype=np.uint8).reshape(h, w, 4)
frames.append(Image.fromarray(arr[..., :3]))
duration_ms = int(1000 / max(1, fps))
save_pair_gif_frames(frames, out_path, duration_ms)
plt.close(fig)
def main() -> None:
args = parse_args()
out_dir = args.out_dir.expanduser().resolve()
out_dir.mkdir(parents=True, exist_ok=True)
pan_path = find_panorama(args.panorama)
panorama_rgb = np.array(Image.open(pan_path).convert("RGB"))
H, W = panorama_rgb.shape[0], panorama_rgb.shape[1]
fix_a = load_fixations(
args.fixations_a.expanduser().resolve(), args.confidence_threshold, args.max_fixations
)
fix_b = load_fixations(
args.fixations_b.expanduser().resolve(), args.confidence_threshold, args.max_fixations
)
shift_x, shift_y = sc7_combined_shift(fix_a, fix_b)
track_a = build_track_sc7(fix_a, args.label_a, W=W, H=H, shift_x=shift_x, shift_y=shift_y)
track_b = build_track_sc7(fix_b, args.label_b, W=W, H=H, shift_x=shift_x, shift_y=shift_y)
build_pair_gif_sc7(
track_a=track_a,
track_b=track_b,
panorama_rgb=panorama_rgb,
out_path=out_dir / "attention_comparison.gif",
fps=args.gif_fps,
gif_frames=args.gif_frames,
)
pd.DataFrame(
[
{
"label": track_a["label"],
"n_fixations": track_a["n"],
"total_fixation_time_s": track_a["total_fix_time_s"],
"mean_fix_duration_ms": track_a["mean_dur_ms"],
},
{
"label": track_b["label"],
"n_fixations": track_b["n"],
"total_fixation_time_s": track_b["total_fix_time_s"],
"mean_fix_duration_ms": track_b["mean_dur_ms"],
},
]
).to_csv(out_dir / "pair_summary.csv", index=False)
print(f"Outputs saved to: {out_dir}")
print(f"Panorama used: {pan_path}")
if __name__ == "__main__":
main()
After you run the script, open
attention_comparison.gif to review the pairwise scanpath animation and pair_summary.csv for numeric comparison. Example assets below use the same paths as on this site (replace with your generated files when you upload).
